The Logipix Bullet Camera Family was engineered to meet the highest expectations in professional surveillance. Each model within the family is a purpose-built device, designed to deliver uncompromising image quality and performance across a wide range of applications and environmental conditions.
Whether used for visible-light monitoring, thermal imaging, dual-spectrum observation, or traffic enforcement, these cameras share the same robust design, featuring rugged IP67-rated housings, high-performance image capture, and outstanding reliability in temperatures ranging from -20°C to +65°C.
The family includes four main types:
• Visible Light Bullet Camera
• Thermal Bullet Camera
• Dual Vision Bullet Camera
• Traffic Bullet Camera
Every member of the Logipix Bullet Camera Family embodies the brand’s commitment to long-term reliability, superior imaging performance, and intelligent design. From urban traffic monitoring to border surveillance, these cameras deliver the precision and dependability that modern surveillance demands.
High Sensitivity. Exceptional Clarity
Equipped with a 1” high-sensitivity sensor, the Logipix Visible Light Bullet Camera provides exceptional low-light performance and professional-grade resolution. Capturing 20 FPS video streams at full 20 MP resolution, it ensures smooth, continuous motion and remarkable detail in every frame.
Each frame is individually compressed using the visually lossless JPEG2000 wavelet-based method, guaranteeing top-quality imagery. The camera is housed in a marine-grade, corrosion-protected enclosure with a hardened window coating for long-term durability. An automatic self-cleaning system with washer and wiper ensures clear vision in all conditions.
High-Resolution Thermal Imaging for Total Visibility
The Logipix 1.3 MP Thermal Bullet Camera delivers precise and reliable thermal imaging performance, ideal for wide-area surveillance and security monitoring in low-visibility conditions. Its high-resolution thermal sensor and built-in 21 mm lens produce sharp thermal imagery even in complete darkness, fog, or harsh weather.
The camera’s IP67-rated housing provides protection against dust, rain, and environmental challenges, while its innovative cooling system maintains optimal operation in both hot and cold climates. The result is consistent, dependable performance under the most demanding circumstances.
Surveillance in wide spectra
The Logipix Dual Vision Bullet Camera combines a 20 MP visible-light module and a 1.3 MP thermal module within a single housing, capturing synchronized imagery from both the visible and thermal spectra.
Covering the exact same field of view, this dual-vision design ensures complete situational awareness, even in zero-light, foggy, or hazy conditions. With its dual output, operators gain enhanced visibility and object detection accuracy in every environment.

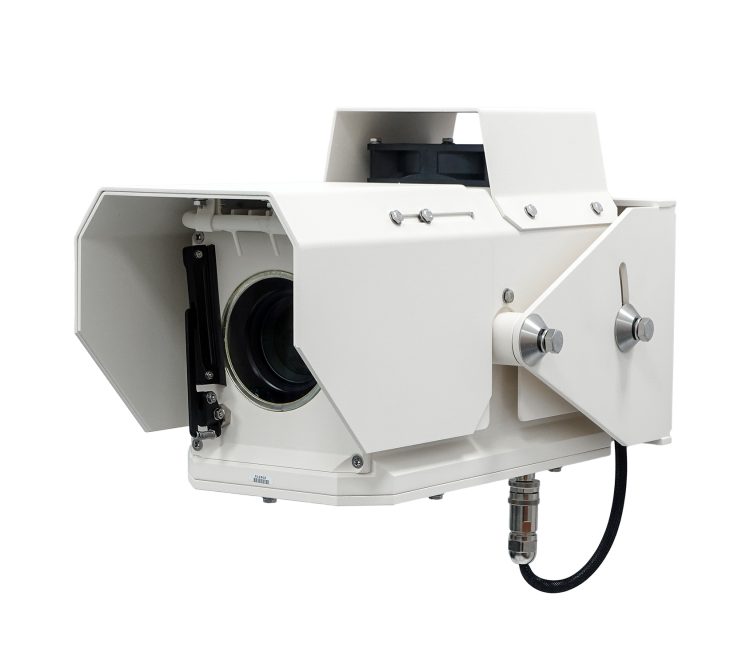

High-Precision Imaging for Smart Traffic Enforcement
Engineered for accuracy and reliability, the Logipix 20 MP Traffic Bullet Camera is designed to capture various traffic violations – including speeding, red-light, and lane violations – with exceptional clarity.
Featuring a 1” CMOS sensor with extra-high sensitivity, the camera produces 20 FPS at full 20 MP resolution, ensuring detailed and reliable evidence under any lighting condition. Its 500 W IR laser flash (808 nm wavelength) provides varifocal illumination with adjustable power levels for both reflective and non-reflective license plates.
An optional self-cleaning system with washer and wiper keeps the optics clear for uninterrupted operation.
