Stadium Video Surveillance Solution

STAS

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix ensures safer environments in stadiums. The solution increases security operational awareness by covering the entire seating area with 120-320 MP panoramic videos wherein every individual is recognizable. It helps operators react quickly to suspicious situations, prevent or defuse outbursts, and efficiently investigate prior incidents.

» Key focus

■ Complete solution – Logipix developed a complete solution consisting of high-end Virtual Panorama Cameras, Network Video Recorders and Video Monitoring Software.
■ Full coverage – The entire seating area can be monitored with only a few Logipix panoramic images, even in the largest stadiums.
■ Panorama and PTZ camera fusion – The solution can be completed with 6 MP PTZ cameras, which function as optical zoom extensions for the panoramas. The PTZ cameras are measured together with the panoramas. This way they can be controlled by selecting the area of interest on the panoramic images.
■ Storage-effective recording – Dual configuration of the system makes it possible to operate in a storage-effective way. The cameras work with full performance during the events, but with moderate settings in between events.
■ Adaptable camera structure – The panoramic images are compiled from the images of individually installed 20 MP cameras using the Logipix Stitching Technology. Thanks to this solution, the system can be tailored to any stadium in any size, and easily restructured in case of future developments.

■ Adaptable camera structure – The panoramic images are compiled from the images of individually installed 20 MP cameras using the Logipix Stitching Technology. Thanks to this solution, the system can be tailored to any stadium in any size, and easily restructured in case of future developments.

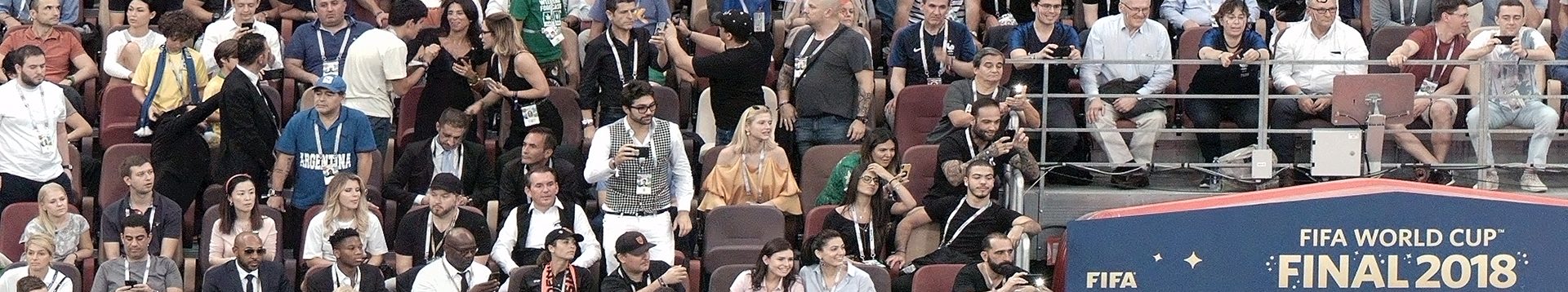

■ Face recognition at every seat – The Logipix Virtual Panorama delivers 120-320 MP resolution videos, allowing face recognition at all seats in the stadium.
■ Multiple zoom windows – Operators can use multiple zoom windows at the same time panning and zooming on the panoramic images.
■ Irrefutable visual evidence – The 20 fps Logipix panoramic stream consists of only JPEG2000 key frames. Each frame can serve as irrefutable visual evidence during investigation.
■ Remote operation – Thanks to the Logipix Match Operation Center, multiple stadiums can be managed from a distant, centralized monitoring room.

stadium panorama

» REAL-TIME VIDEO SURVEILLANCE

Watching 120-320 MP panoramic streams operators can easily spot any suspicious situation at the stadium seats. They can react fast to any disorderly conduct and instruct the security staff to take necessary measures in order to prevent escalating situations. Thanks to the extreme high-resolution images and easy-to-use zoom functions, operators get fine-details of all spectators and they can manually track any motion and action in the monitored area. Following the situation in panoramic images and zoom windows simultaneously results in better spatial orientation and more confident instructions to guide security guards.

real-time_video_surveillance

» INVESTIGATING INCIDENTS

investigating_incidents

In case any incident occurs that needs further investigation, operators or proper authorities use full resolution security footage to explore the case thoroughly. They can search among exceptionally detailed images and use them as irrefutable evidence on demand. High-resolution video crops can be exported and images can be saved and printed of spectators to undoubtedly identify them. Data integrity ensures all image files are intact and unchanged.In case any incident occurs that needs further investigation, operators or proper authorities use full resolution security footage to explore the case thoroughly. They can search among exceptionally detailed images and use them as irrefutable evidence on demand. High-resolution video crops can be exported and images can be saved and printed of spectators to undoubtedly identify them. Data integrity ensures all image files are intact and unchanged.

» Focusing on advantages

■ 250-400 ppm resolution – Undoubted visual evidence to identify spectators
■ Panoramic view – Better spatial awareness, focus is not split due to many individual camera streams
■ Individual zoom windows – Independently movable zoom areas, while having a panoramic overview at the same time
■ Virtual panorama – Easily structurable camera arrangement
■ Zoom presets – Fast and easy scan on sectors that are more prone to outbursts
■ Unique PTZ control – Convenient PTZ control by selecting the area of interest in the panoramic image
■ Match Operation Center – Remote monitoring with full functionality

stadium blue overlay
Virtual Panorama Camera

Precise preliminary 3D plan to design accurate camera arrangement based on desired resolution values

Camera groups of up to 16 pieces of 20 MP cameras
Specially developed sunshields to protect against lens flares caused by stadium reflectors

A single Virtual Panorama covers several entire sectors with 250-400 ppm resolution

120-320 MP stitched images 20 fps video stream at full resolution



Outside The Seating Area

Monitoring gates, corridors and perimeter areas with 5-20 MP single and 2-6 MP PTZ cameras

Logipix_virtual_panorama
Logipix_zoom_functions
Logipix Zoom Functions

Multiple zoom windows for panoramic images

Zoom as if a virtual panoramic image were a single one

Zoom presets on panoramic images

Optical zoom extension by PTZ cameras

PTZ and Panorama fusion in order to control the PTZ on the panoramic image

PTZ bookmarks and zoom history

Recording & Storage Management

Stadium Event Management with dual system configuration

Scheduled frame rate reducing technology (Aging) to maximize available storage space

Custom configuration to satisfy compliance with local security data regulations

security executive chief discussing activity with worker in front of video monitoring surveillance security system
Match Operation Center

Centralized monitoring room

Remotely accessible stadiums

Full functionality

» Technology

Panorama technology

Precise Geometrically stitched images of individual Logipix sensors

Synchronized imaging in order to avoid duplicated or hidden objects

White balance and gradient correction

PTZ cameras in the system

High-en Logipix Panorama and PTZ cameras work together

Measuring PTZ and Panorama together in order to control PTZ on the panoramic image

Utilizing the full resolution

JPEG2000 compression standard

Utilizing resolution scalability during display

stadium_main_reference_blue overlay

» Learn more

Logipix ensures safer stadium environments with STAS. Enhance security operational awareness by covering the entire seating area with 120-320 MP panoramic videos, ensuring the recognition of every individual. Download the brochure for more details.

Read more

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

STAS brochure 2023

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Download our latest Company Profile brochure for exclusive insights into cutting-edge solutions revolutionizing video monitoring and surveillance. Stay ahead with Logipix.

Read more

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Company profile 2023

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7 yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

This booklet offers a comprehensive overview of our various panorama concepts. You will gain exclusive insights into the hardware units, edge AI, and advanced display technology. These components collectively form a complete solution that shape the future of video surveillance.

Read more

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Panorama technology

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7 yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

» Main components

Main products

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 328 MP 40°
Dual-Vision Panorama

The Logipix Panorama camera produces hundreds of megapixel images with details that provides effective visual information in all lighting conditions.

The camera delivers wide dynamic range, has improved low-light performance and extra high sensitivity.

More

Main products

Logipix 320 MP 40°
Visible Panorama

The Logipix 320 MP Panorama camera camera provides wide dynamic range images, have an improved low-light performance and extra high sensitivity.

The camera house is completed with an automatic self-cleaning system that consists of a tank with cleaning liquid, a dispenser system and wipers at every window for the best images.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 300 MP 180°
Visible Panorama

The Logipix 300 MP Panorama camera camera provides wide dynamic range images, have an improved low-light performance and extra high sensitivity.

The camera house is completed with an automatic self-cleaning system that consists of a tank with cleaning liquid, a dispenser system and wipers at every window for the best images.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 200 MP 180°
Visible Panorama

The Logipix 200 Mp Panorama camera images ensure an expanded view. Operators can continuously observe the whole monitored area on one camera image without redundant or hidden areas. The huge resolution even makes it possible to recognize faces at a large distance. The camera house is completed with an automatic self-cleaning system that consists of a tank with cleaning liquid, a dispenser system and wipers at every window for the best images.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 960 MP 120°
Visible Panorama

The Logipix 960 MP Panorama camera images ensure an expanded view. Operators can continuously observe the whole monitored area on one camera image without redundant or hidden areas.

The huge resolution even makes it possible to recognize faces at a large distance.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 120 MP 120°
Visible Dronw Panorama

This military grade camera provides expanded vision for unmanned aircraft systems. Equipping the drone with a 120 MP Drone Panorama Camera provides continuous 120° monitoring over the surroundings.

The rugged camera housing contains a 120 MP multi-sensor panorama camera for high-resolution visible light imaging.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 20 MP
Visible Camera

The Logipix ONE 20 MP camera produces a 20 FPS video stream at full resolution, therefore any motion in the footage seems continuous. The device uses the visually lossless JPEG2000 wavelet-based compression method, compressing each frame separately. The video stream does not contain predicted frames.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 20 MP
Visible Bullet Camera

The 20 Megapixel Day/Night Camera is encased in a rugged IP66 housing, designed to withstand vibration in accordance with MIL STD 810G. It provides high-performance images, even in extreme environmental conditions, in temperatures ranging from -40°C to +70°C.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 6 MP
PTZ Camera

The PTZ has a unique integrated Laser illuminator with an automatic cooperating focus system, it is able to provide quality images of monitored targets even in low lighting conditions.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix 2 MP
Long-Range PTZ Camera

The Logipix 2 MP PTZ ensures a high resolution and a 25 FPS speed. The camera provides effective manual target tracking thanks to its fast positioning and high accuracy within a 360° horizontal and 180° vertical range.

The PTZ has a unique integrated IR Laser illuminator with an automatic cooperating focus system.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix Gen4
Network Video Recorder

Logipix NVR Rack-mount is a 4th generation, high performance network video recorder specially designed for the Logipix Panorama and single cameras.

7 Gbit/sec recording speed ensures the reliable recording of the 20 FPS video streams of the Logipix ONE cameras without any reduction in camera performance.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main products

Logipix Gen4
Outdoor NVR

The Logipix NVR Outdoor is the high speed network video recorder of the Logipix solutions that was specially developed for on-site recording tasks.

The thermal control of the electronic components relies on a combined system of integrated heat pipes and fans, a thermoelectric peltier cooler and sunshields.

More
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Main components for our solutions

Logipix 328 MP
Thermal & Visible Panorama

Explore

The Logipix Panorama camera produces hundreds of megapixel images with details that provides effective visual information in all lighting conditions.

The camera delivers wide dynamic range, has improved low-light performance and extra high sensitivity.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 300 MP 180°
Visible Panorama

Explore

The Logipix 300 MP Panorama camera produces hundreds of megapixel large images on which every detail is clearly visible in all lighting conditions.

The camera provides wide dynamic range images, have an improved low-light performance and extra high sensitivity. This camera is able to cover large areas with high resolution from a single viewpoint.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 320 MP 40°
Visible Panorama

Explore

The Logipix 320 MP Panorama camera camera provides wide dynamic range images, have an improved low-light performance and extra high sensitivity.

The camera house is completed with an automatic self-cleaning system that consists of a tank with cleaning liquid, a dispenser system and wipers at every window for the best images.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 200 MP 180°
Visible Panorama

Explore

The Logipix 200 MP Panorama camera images ensure an expanded view. Operators can continuously observe the whole monitored area on one camera image without redundant or hidden areas. The huge resolution even makes it possible to recognize faces at a large distance.

The camera house is completed with an automatic self-cleaning system that consists of a tank with cleaning liquid, a dispenser system and wipers at every window for the best images.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 978 MP 120°
Dual-Vision Panorama

Explore

The Logipix 978 MP Thermal & Visible light Panorama camera images ensure an expanded view. Operators can continuously observe the whole monitored area on one camera image without redundant or hidden areas. The huge resolution even makes it possible to recognize faces at a large distance.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 120 MP 120°
Drone Panorama

Explore

This military grade camera provides expanded vision for unmanned aircraft systems. Equipping the drone with a 120 MP Drone Panorama Camera provides continuous 120° monitoring over the surroundings.

The rugged camera housing contains a 120 MP multi-sensor panorama camera for high-resolution visible light imaging.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix ONE 20 MP
Visible Camera

Explore

The Logipix ONE 20 MP camera produces a 20 FPS video stream at full resolution, therefore any motion in the footage seems continuous.

The device uses the visually lossless JPEG2000 wavelet-based compression method, compressing each frame separately. The video stream does not contain predicted frames.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix ONE 20 MP
Bullet Camera

Explore

The 20 Megapixel Day/Night Camera is encased in a rugged IP66 housing, designed to withstand vibration in accordance with MIL STD 810G.

It provides high-performance images, even in extreme environmental conditions, in temperatures ranging from -40°C to +70°C.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 6 MP
PTZ Camera

Explore

The PTZ has a unique integrated Laser illuminator with an automatic cooperating focus system, it is able to provide quality images of monitored targets even in low lighting conditions.

Specially developed PTZ control functions in the Logipix Control Center, such as mouse controlled joystick emulation, the PointIT control function or PTZ position bookmarks make monitoring convenient and easy.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix 2 MP
Long-Range PTZ Camera

Explore

The Logipix 2 MP PTZ ensures a high resolution and a 25 FPS speed. The camera provides effective manual target tracking thanks to its fast positioning and high accuracy within a 360° horizontal and 180° vertical range.

The PTZ has a unique integrated IR Laser illuminator with an automatic cooperating focus system.

yH5BAEAAAAALAAAAAABAAEAAAIBRAA7
yH5BAEAAAAALAAAAAABAAEAAAIBRAA7

Logipix Gen4
Network Video Recorder

Explore

Logipix NVR Rack-mount is a 4th generation, high performance network video recorder specially designed for the Logipix Panorama and single cameras.

7 Gbit/sec recording speed ensures the reliable recording of the 20 FPS video streams of the Logipix ONE cameras without any reduction in camera performance.

Logipix Gen4 Outdoor
Network Video Recorder

Explore

The Logipix NVR Outdoor is the high speed network video recorder of the Logipix solutions that was specially developed for on-site recording tasks. Thanks to its massive outdoor enclosure with an IP65 rating, it is able to cope with even extreme weather conditions.

The thermal control of the electronic components relies on a combined system of integrated heat pipes and fans, a thermoelectric peltier cooler and sunshields.
