Components of Logipix Solutions
Logipix state-of-the-art cameras reveal what lies beyond natural human sight. With extended spectral coverage and exceptional ultra-high resolution, they reshape perception, enabling the detection and accurate classification of distant objects even kilometers away.
Yet Logipix is far more than advanced imaging. We engineer complete, end-to-end systems that include high-performance recording devices, specialized accessories, and advanced software for intelligent monitoring.
Explore our main product line and start uncover the unseen
Logipix visible-light panorama cameras provide uncompromising 100–320 MP resolution range with various FoV configurations for different application areas. Each unit features integrated self-cleaning, advanced thermal control, and optional de-icing systems. Engineered from high-grade, durable materials, they deliver long-term, mission-ready performance in demanding environments.

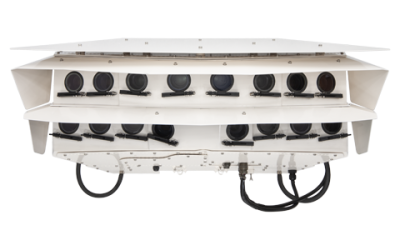

| 320 MP resolution and 20 fps video stream |
| 40° HFoV (Field of View), 22.5° VFoV |
| Custom silicon for edge AI |
| Effective coverage area for automatic human detection: 30 - 3000 m |

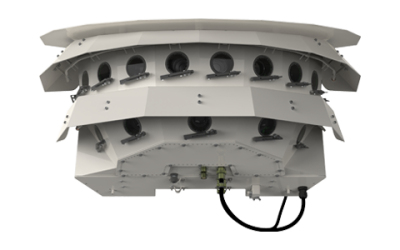

| 300 MP resolution and 20 fps video stream |
| 180° HFoV (Field of View), 45° VFoV |
| Custom silicon for edge AI |
| Effective coverage area for automatic human detection: 10 - 600 m |

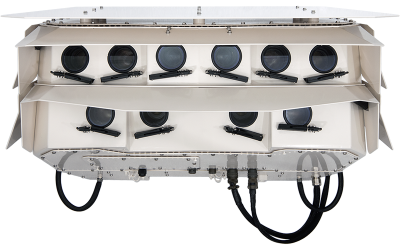

| 200 MP resolution and 20 fps video stream |
| 180° HFoV (Field of View); 14.5° VFoV |
| Custom silicon for edge AI |
| Effective coverage area for automatic human detection: 40 - 600 m |

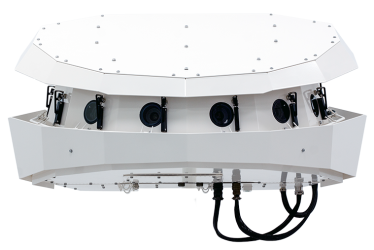

| 160 MP resolution & 20 fps video stream |
| 220° HFoV (Field of View), 30+15° VFoV |
| Custom silicon for edge AI |
| Long-distance airspace monitoring |
| 200 MP resolution & 20 fps video stream |
| 20° HFoV (Field of View), 22.5° VFoV |
| Custom silicon for edge AI |
| Effective coverage area for automatic human detection: 30 - 3000 m |
| 120 MP resolution & 20 fps video stream |
| 120° HFoV (Field of View) |
| Advanced digital image stabilization |
| Tethered operation |

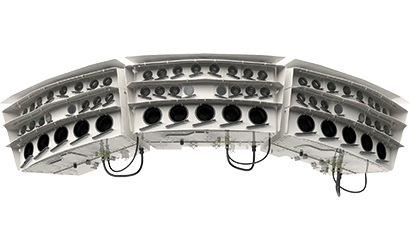

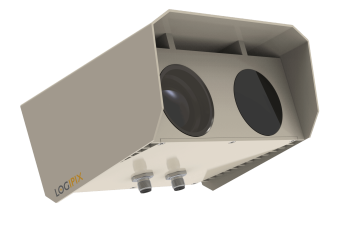

Logipix Dual Vision Panorama cameras combine high-resolution visible-light and thermal imaging modules that monitor the exact same area. Their expanded spectral coverage ensures effective detection and tracking in challenging visibility conditions—including pitch darkness, fog, glare, smoke, and harsh weather—delivering reliable, continuous situational awareness when it matters most.
| 960 MP visible & 20 MP thermal resolution and 20 fps video stream |
| 120° HFoV (Field of View), 22.5° VFoV |
| Custom silicon for edge AI |
| Effective coverage area for automatic human detection: 30 - 3000 m |

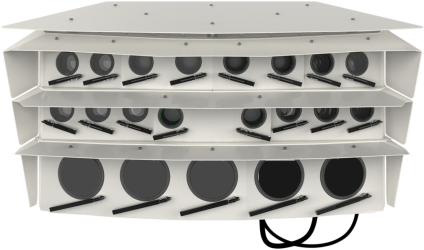

| 320 MP visible & 8 MP thermal resolution and 20 fps video stream |
| 40° HFoV (Field of View), 22.5° VFoV |
| Custom silicon for edge AI |
| Effective coverage area for automatic human detection: 30 - 3000 m |

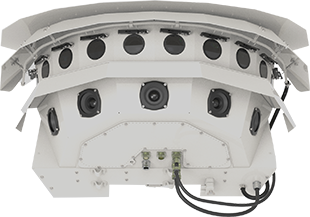

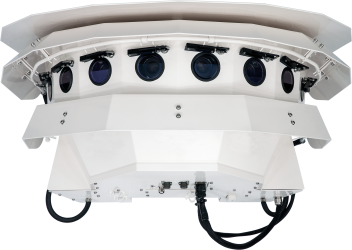

| 200 MP visible & 6 MP thermal resolution and 20 fps video stream |
| 180° HFoV (Field of View), 14.5 VFoV |
| Custom silicon for edge AI |
| Effective coverage area for automatic human detection: 40 - 600 m |
The Logipix Bullet Camera Family is engineered for professional surveillance, delivering uncompromising image quality across a wide range of applications and environmental conditions. With rugged IP67 housings, high-performance imaging, and reliable operation from –20°C to +65°C, they ensure consistent performance in demanding environments.
| 20 MP resolution & 20 fps video stream |
| Varifocal field of view |
| Optional self-cleaning |
| IP 67 housing |

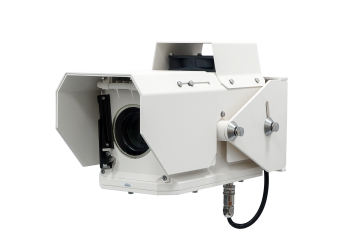

| 20 MP resolution & 20 fps video stream |
| Custom silicon for edge AI |
| Rugged IP67 Housing |
| Marine grade materials |
| 20 MP visible & 1.3 MP thermal resolution and 20 fps video stream |
| Custom silicon for edge AI |
| Complete situational awreness in zero-light, foggy and hazy conditions |

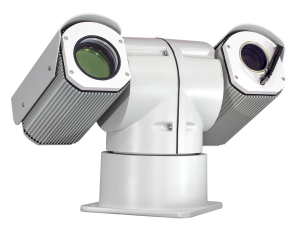

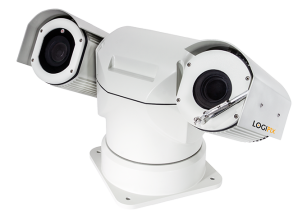

Logipix PTZ cameras deliver extraordinary optical zoom and ultra-long-range visibility for precise surveillance over vast areas. With their robust IP66-rated outdoor enclosures, they ensure reliable, high-performance operation even in challenging environmental conditions.
| 2 MP resolution, 36x optical zoom |
| IR Laser Illuminator with automatic cooperating focus |
| Fast and precise motion |
| Reliable and fast autofocus, even in low-visibility conditions |
| 6 MP resolution, 36x optical zoom |
| IR Laser Illuminator with automatic cooperating focus |
| Fast and precise motion |
| Reliable and fast autofocus, even in low-visibility conditions |
| 6 MP resolution, 36x optical zoom |
| IR Laser Illuminator with automatic cooperating focus |
| Fast and precise motion |
| Reliable and fast autofocus, even in low-visibility conditions |
Logipix products for military vehicles are specifically engineered to equip armored platforms with advanced video systems that significantly enhance crew visibility. Built to military-grade standards, they feature rugged IP67 housings and vibration resistance compliant with MIL-STD-810G, ensuring reliable performance in the harshest operational environments.
| 20 MP resolution and 20 fps video stream |
| 90° HFoV, 64° vertical VFoV |
| Military grade camera for armored vehicles |
| Rugged IP67 housing, vibration resistance in accordance with MIL STD 810G |
| 20 MP visible & 1.3 MP thermal resolution and 20 fps video stream |
| Military grade camera for armored vehicles |
| Complete situational awreness in zero-light, foggy and hazy conditions |
| Vehicle-mount enclosure, MIL STD 810G |
| 4 port 1 Gbit copper for Logipix cameras |
| Display output 1280 x 1024 @ 60Hz DVI / VGA resolution |
| 24 V operating voltage (18 - 36 V range) |
| Tactile Programmable Buttons, 20 pcs |
| 12.1” TFT IPS LCD |
| Automatic dimming |
| MIL-STD-461, 810 Compliant |
The high-end Logipix ONE leads the lineup as an exceptional camera for traffic violation detection and general surveillance. Complementing it, Logipix box and dome cameras are designed for simpler tasks while still delivering above-average image quality. Offered in a wide range of resolutions for indoor and outdoor use, they effectively cover blind spots and strengthen broader surveillance networks.
| 20 MP resolution and 20 fps video stream |
| High Dynamic Range Technology |
| Automatic Day/Night/IR modes |
| Optical filters to enhance image quality in low-visibility conditions |
Logipix accessories provide powerful complementary capabilities to enhance camera performance. The IR Laser Flash enables clear capture of both reflective and non-reflective license plates, while advanced radar modules support precise speed measurement. For high-security environments, MIMO radar delivers robust detection and tracking, making these add-ons essential components of advanced surveillance systems.
| 500 W output power |
| Multiple power illumination mode |
| IP67 rated enclosure with wiper |
| Synchronized operation with Logipix Traffic cameras |
| 100 W output power |
| IP67 rated enclosure |
| Synchronized operation with Logipix Traffic cameras |
| Monopulse, Fast FMCW |
| Speed measurement up to 300 km/h |
| Sensor fused with Logipix image sensors |
| Multi-zone video motion detection analytics |

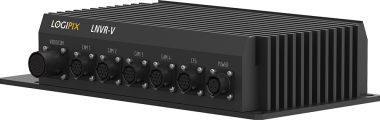

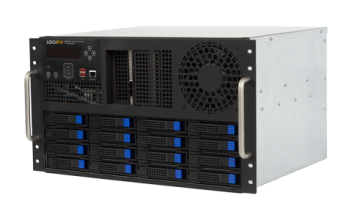

Logipix Network Video Recorders come in rack-mount, outdoor, and compact designs, all built to meet the highest regulatory standards. With smart image transmission and high-level cybersecurity, they ensure secure, reliable, and efficient video data management.
| 10 Gbit SFP+ socket for camera connection |
| 16 hot-swappable SATA HDDs |
| Up to 384 TB storage capacity withouth storage extender |
| Built-in RAID function |
| Recording speed 7 GBit/sec |
| Intelligent image transmission |

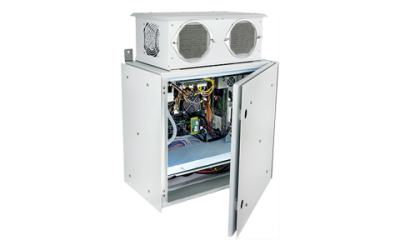

| IP66 box-mount, outdoor enclosure |
| Semi-passive and automatic active cooling system, fans and sunshields |
| Built-in Video Content Analysis functions |
| Designed to work reliably in outdoor conditions |
| Low bandwith operation |
| Compact design, 178 x 11 x 52 (mm) |
| 1 port 1 Gbit copper for Logipix cameras |
| VRMTM fail-safe file system |
| Semi-passive cooling system |

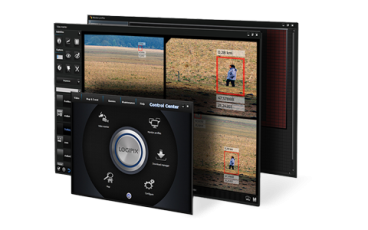

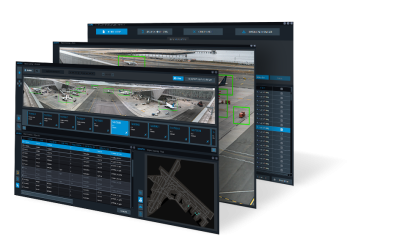

Logipix software components are purpose-built for specialized monitoring and management tasks. LAARS enhances airside awareness with advanced AR features, ARCS streamlines turnaround processes, HIGS secures highways with virtual patrols, and the Violation Management module enables fast, precise evaluation of automatically detected traffic violations.
| Real-time display of 300 MP video streams in full resolution |
| AI-powered analysis of situations from basic to complex, in real time |
| Interlinked monitoring modules: Video, Zoom windows, Object list, Interactive map |
| Object-based search in Video History |

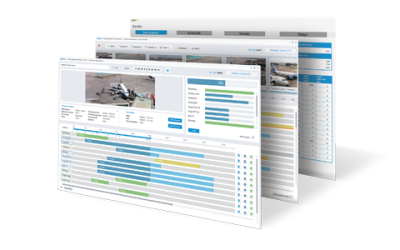

| Easy turnaround process management and registration |
| Stand status monitoring and interactive map |
| Support for alert, warning and delay management |
| Organized data about all services, visual evidence linked to each activity |
| Low-latency, real-time high-resolution video streams |
| 360-degree view |
| AI-powered Computer Vision |
| Real-Time Decision Making Support |
| Fusing real-time radar with live camera images and maps |
| High-efficient low-bandwidth image encoding for remote monitoring |
| Multiple zoom windows on a single panoramic image |
| Automatic Target Tracking and real-time GPS positions |

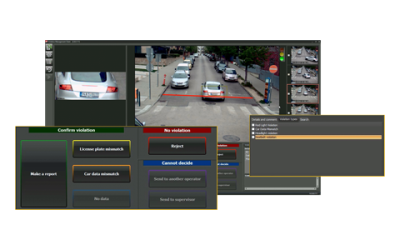

| Accelerated violation evaluation, efficient throughput, high-volume processing |
| Compiled violation data: high-res visual evidence, ANPR and vehicle data |
| Enhanced query and filtering capabilities for violation data |
| Detailed analytics on violation patterns and operator performance metrics |
| Object tracking, classification and radar-video sensor fusion |
| Real-time, automatic incident detection and alerts |
| Remote, virtual patrol tours and interactive map interface |
| Object-based search in Video History |
